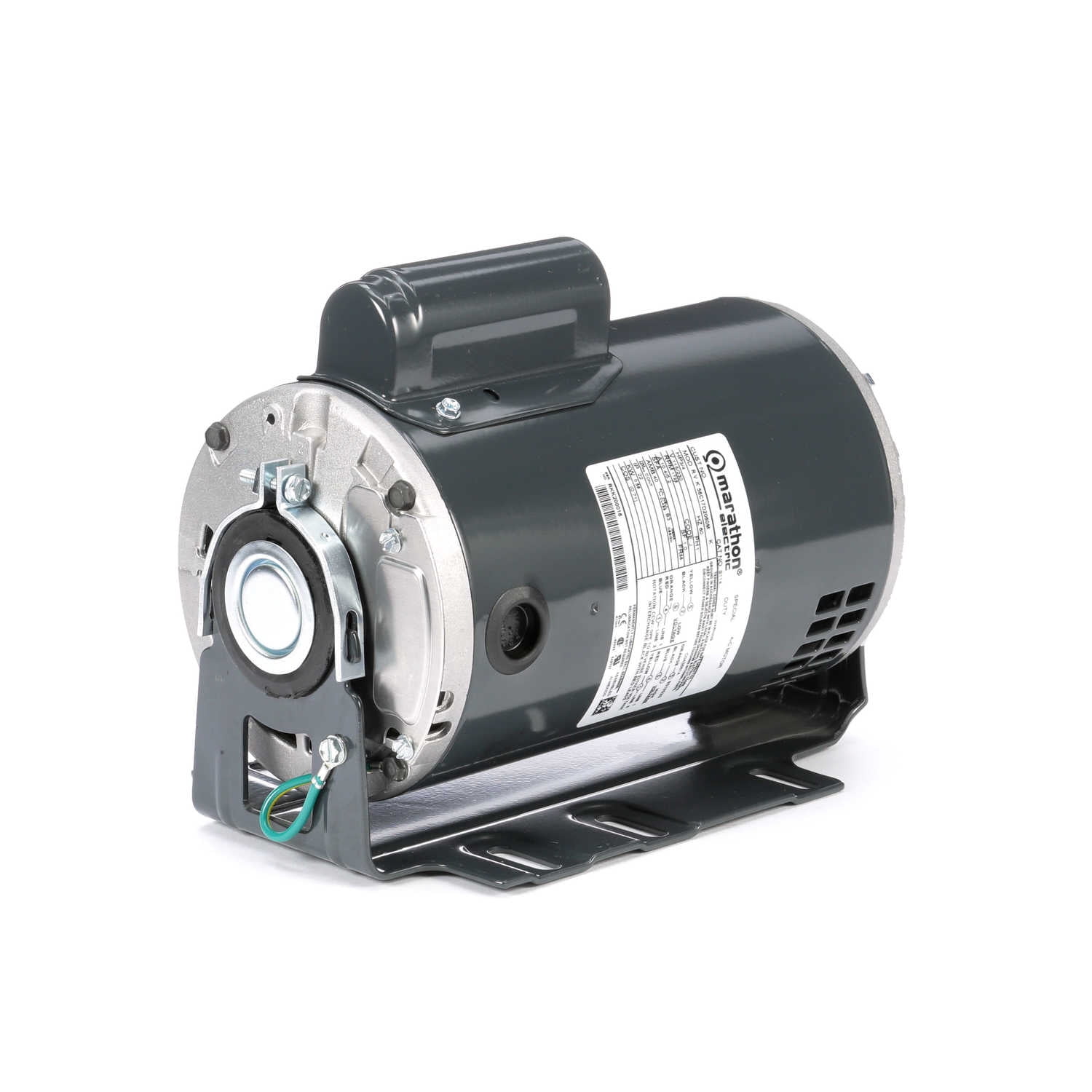

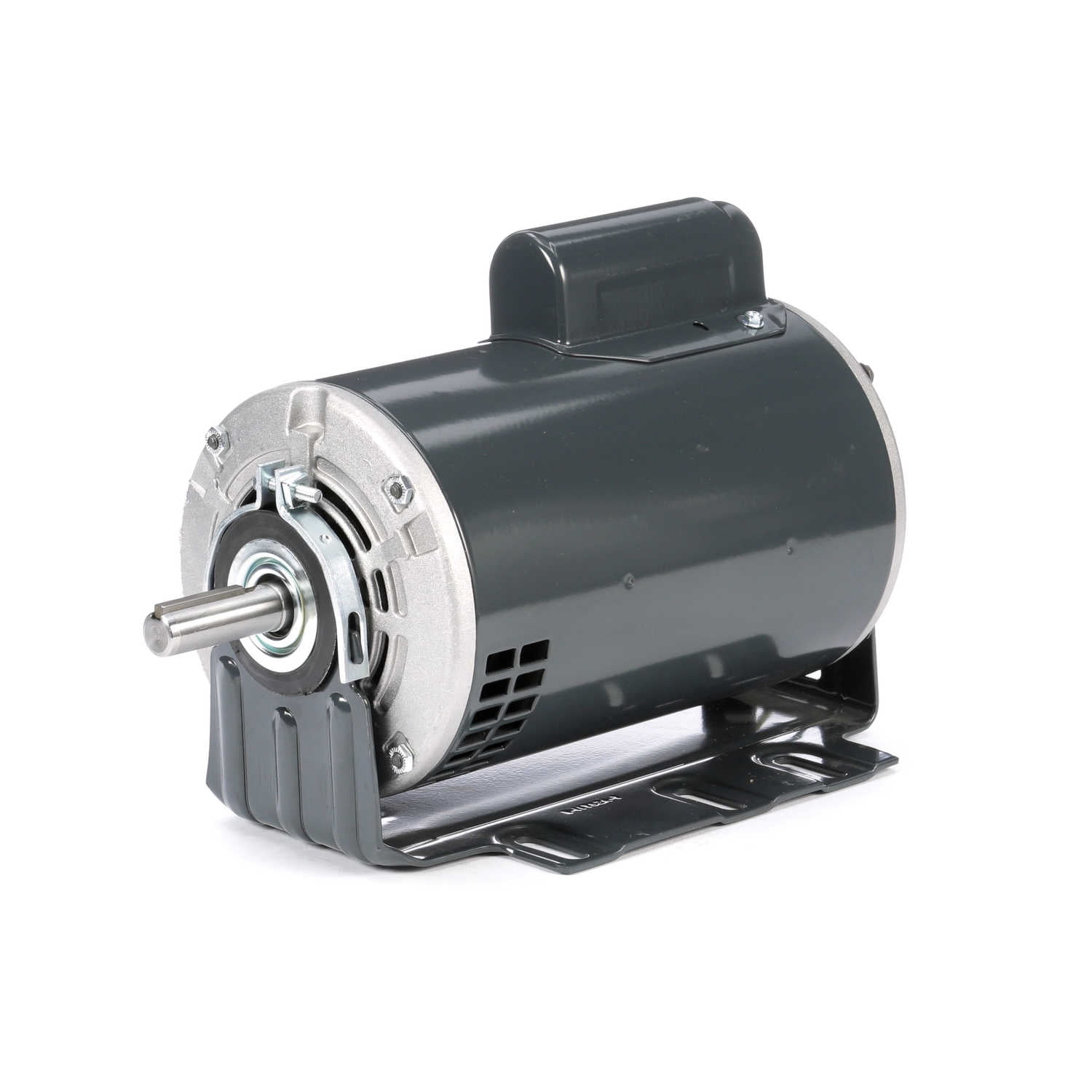

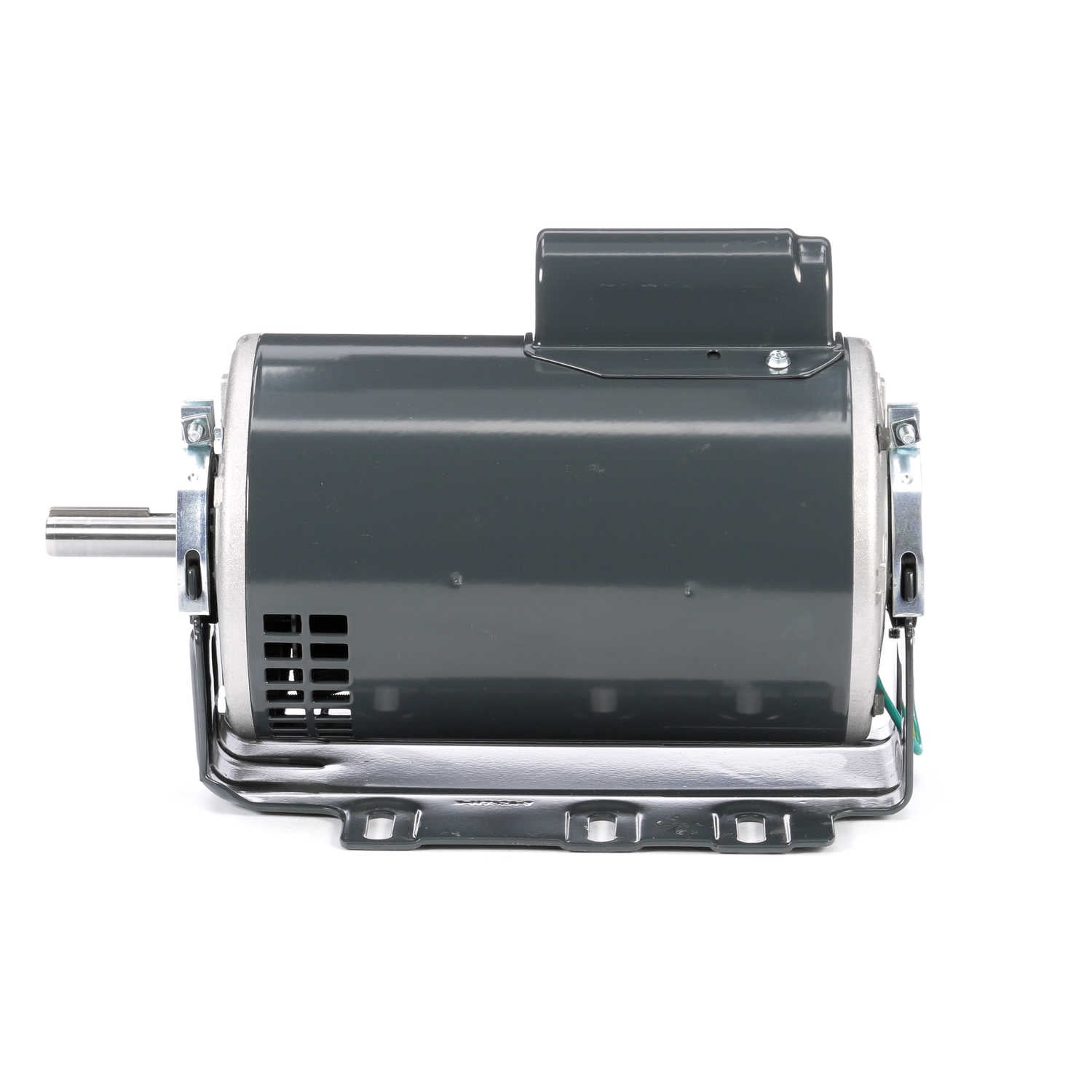

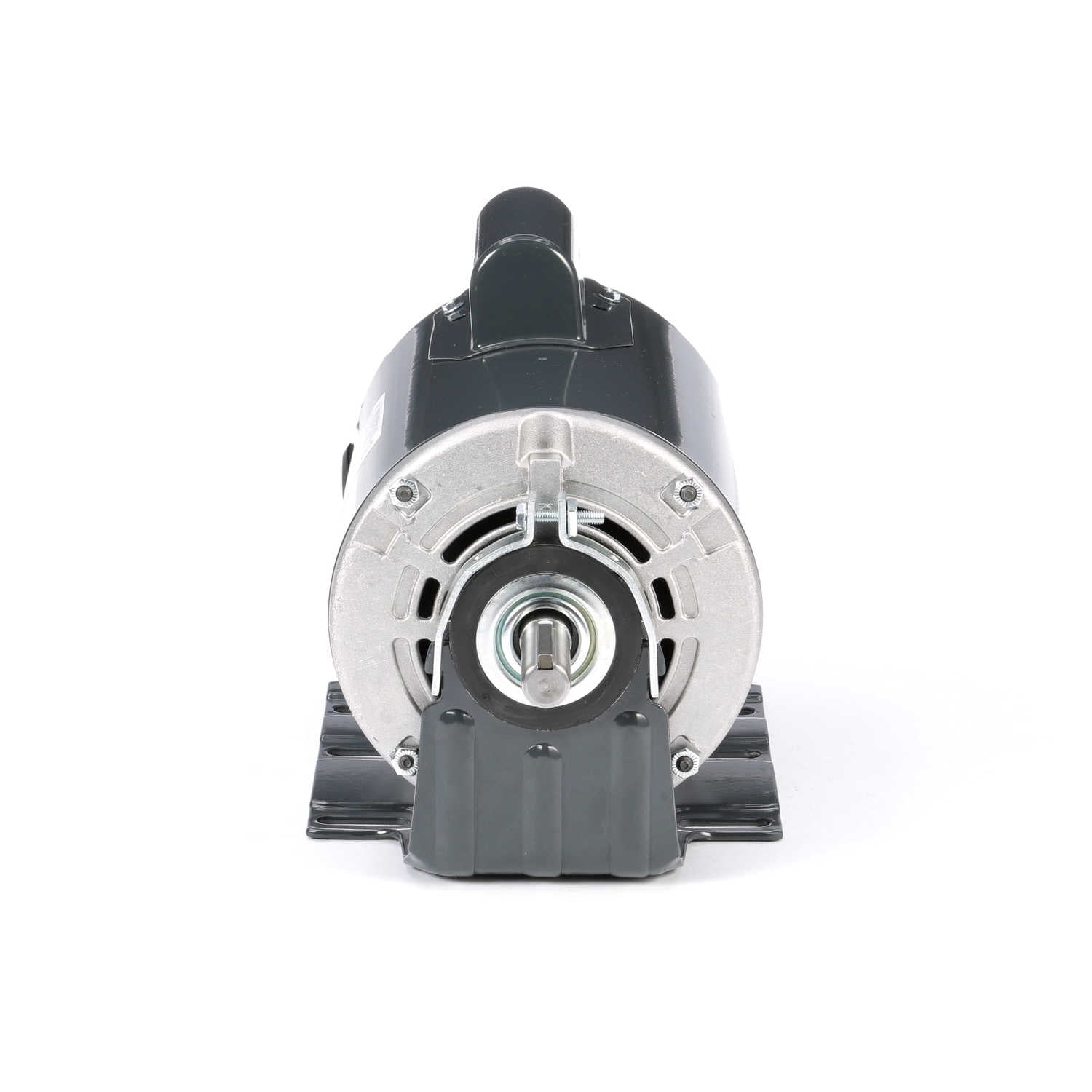

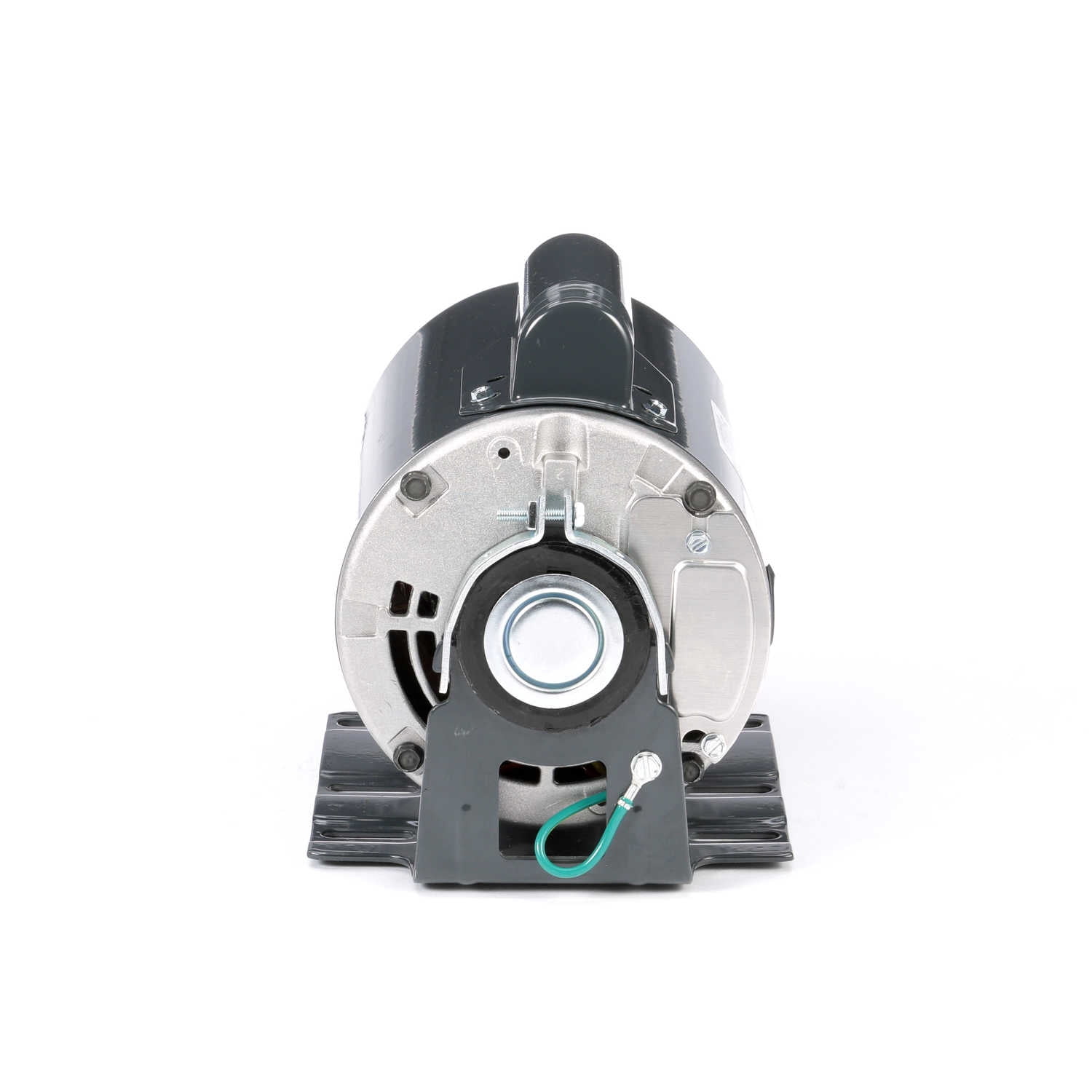

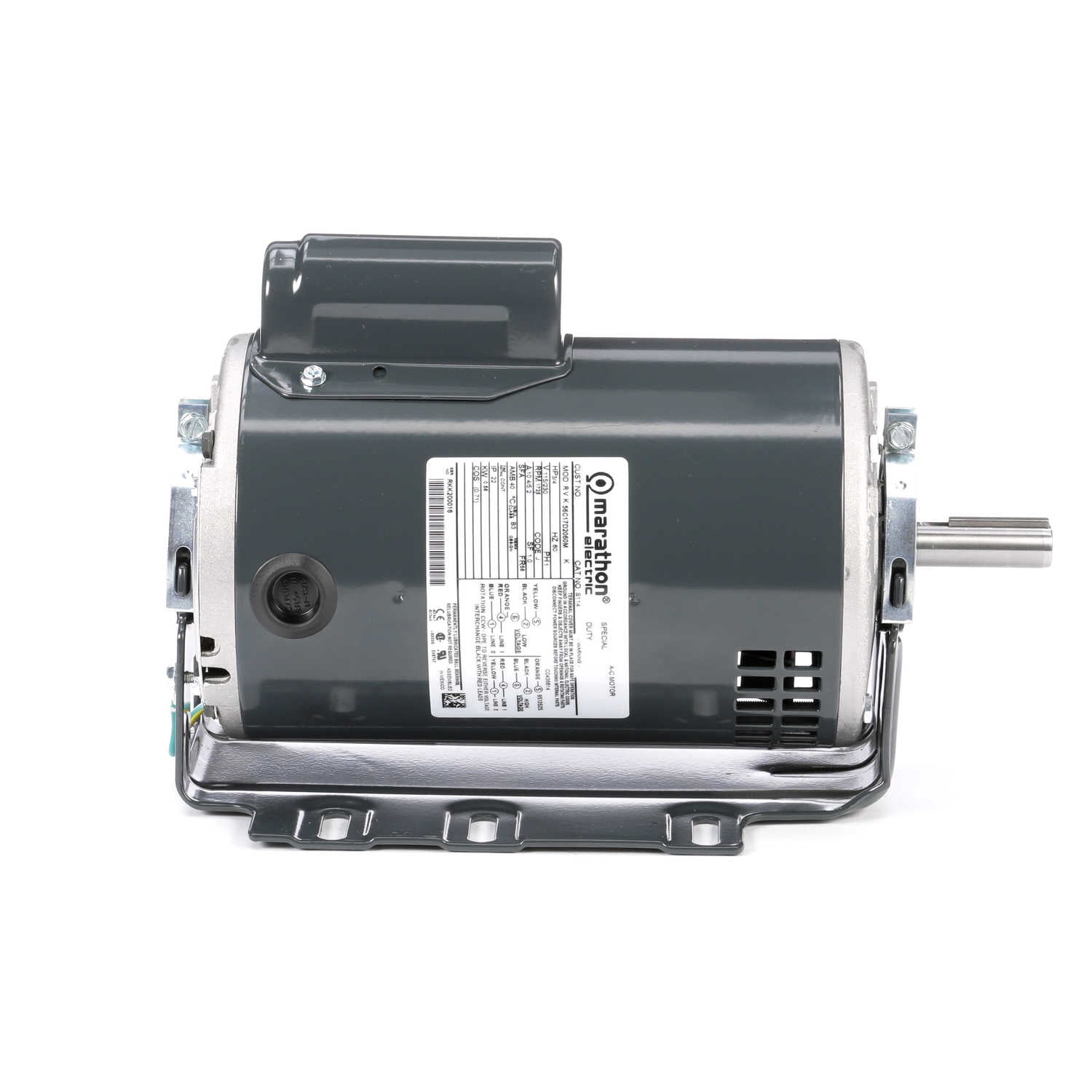

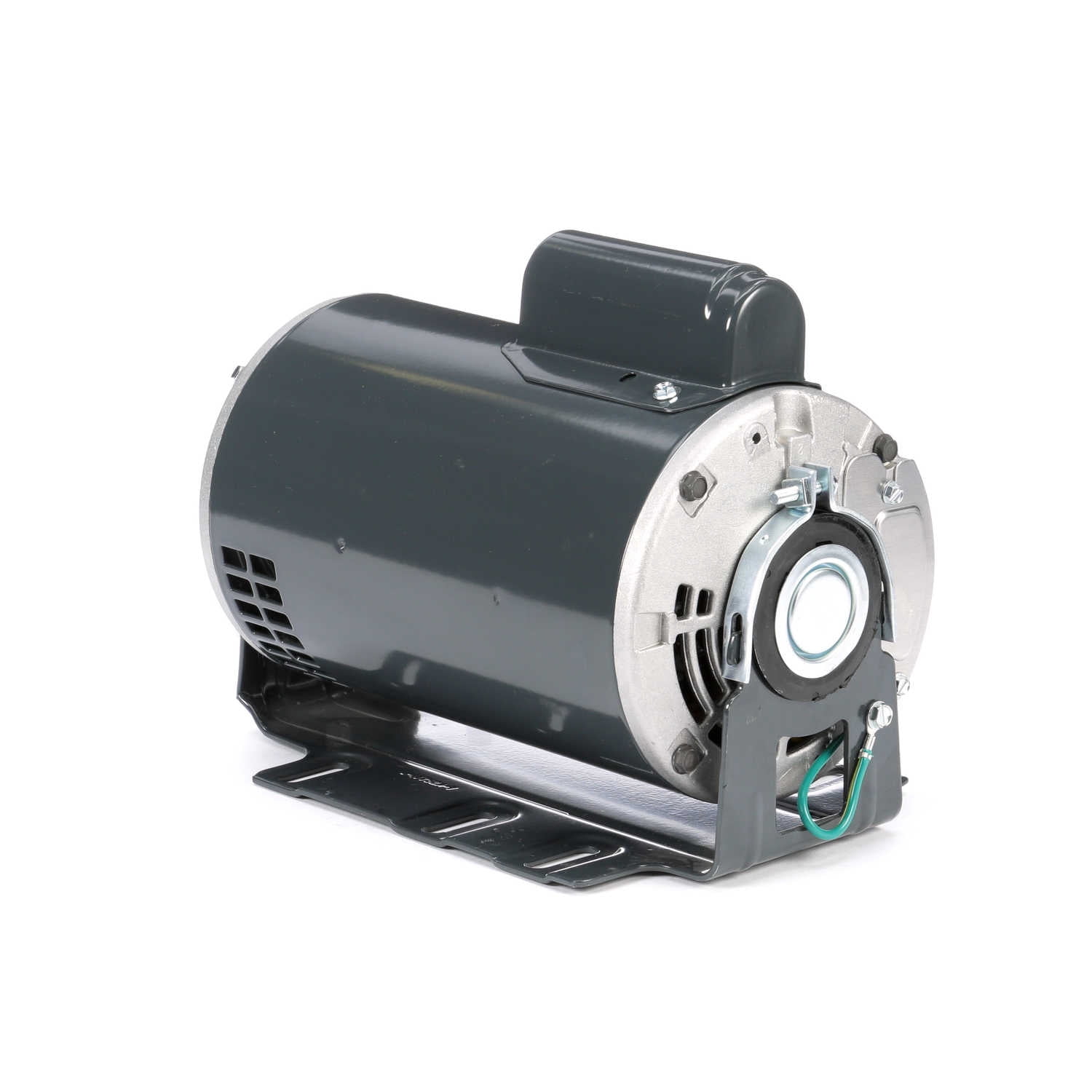

Marathon D143 Electric Motor 1/3 HP 1725 Rpm 1PH 115 Volt 48 Frame 048S17D2086
Product details
| Management number | 230748644 | Release Date | 2026/06/18 | List Price | $141.20 | Model Number | 230748644 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Leeson, formerly Marathon, S114 general purpose motor by Regal Rexnord is a dependable 3/4 HP single‑phase motor designed for fans, blowers, pumps, and other standard industrial applications in clean, dry environments. Operating at 1800 RPM on 115/230V power, this motor features a NEMA 56 frame with a resilient base mount and an open drip‑proof (ODP) enclosure for effective cooling and reliable operation. Built for continuous duty with a capacitor‑start induction‑run design, ball bearings, and a robust steel frame, the S114 delivers strong starting torque, smooth performance, and long service life, making it an excellent replacement or OEM solution for general purpose equipment.
- Horsepower: 3/4 HP (0.56 kW)
- Phase: Single Phase
- Voltage: 115/230V
- Frequency: 60 Hz
- Speed: 1725–1800 RPM
- Frame: NEMA 56
- Mounting: Resilient Base
- Enclosure: Open Drip Proof (ODP)
- Service Factor: 1.0
- Duty Rating: Continuous Duty
- Insulation Class: B
- Electrical Design: Capacitor Start, Induction Run
- Bearings: Ball Bearings
- Shaft: 5/8 in Diameter, Keyed
- Rotation: Reversible
- Ambient Temperature Rating: 40°C
- IP Rating: IP22
- Certifications: UL Recognized, CSA Certified
| Horsepower | 0.75 HP |
|---|---|
| Electric motor type | AC Motor |
| Electrical phase | Single Phase |
| Maximum motor speed | 1800 rpm |
| Brand | Marathon Electric |
| Has nrtl listing certification | N |
| Assembled product height | 1.000 |
| Model | 056C17D2060 |
